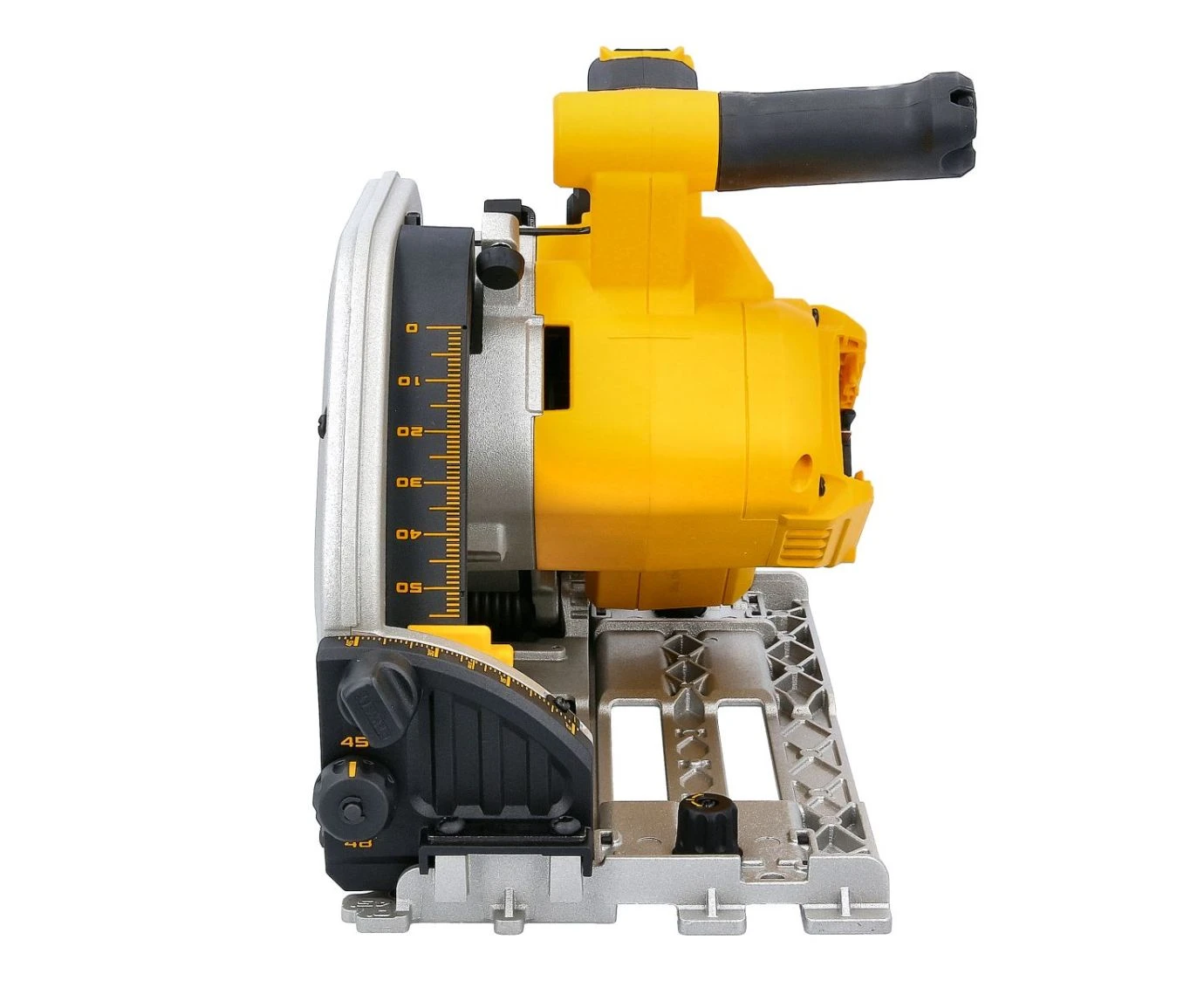

DeWalt DCS525N-XJ 18V XR Brushless 165mm Plunge Saw / Track Saw – Bare Unit

Description

SHORT DESCRIPTION

The DeWalt DCS525N-XJ 18V XR Brushless 165mm Plunge Saw delivers clean, controlled plunge cuts and accurate rail-guided cutting on the familiar DeWalt 18V XR battery platform. Its variable-speed brushless motor is joined by electronic anti-kickback protection, a 3mm scribe setting, fine depth adjustment and improved splinter control. AirLock dust extraction and Wireless Tool Control compatibility help maintain a cleaner working environment. Ideal for kitchen fitting, cabinet making, joinery and precise sheet-material cutting. Supplied as a bare unit without battery, charger, guide rail or case.

FULL PRODUCT DESCRIPTION

The DeWalt DCS525N-XJ 18V XR Brushless 165mm Plunge Saw is DeWalt’s new-generation cordless track saw for professional joiners, kitchen fitters, cabinet makers and site carpenters.

Powered by the widely used DeWalt 18V XR battery system, the DCS525 provides the accuracy of a plunge saw without requiring a separate 54V FLEXVOLT battery. It can be used freehand or with compatible DeWalt guide rails for controlled plunge cuts, trimming, cross-cutting and long, straight cuts through sheet materials.

Its brushless motor produces a variable no-load speed of 2,500–5,400rpm, allowing the cutting speed to be matched more closely to the material and blade being used. The 165mm blade provides a maximum cutting depth of 59mm without a guide rail or 54mm when mounted on a compatible DeWalt rail.

Electronic anti-kickback protection monitors the saw for a potential bind or sudden rotational movement, while an LED provides a visible warning when the system is activated. This works alongside the controlled parallel plunge action to provide greater confidence during demanding plunge and track-saw applications.

For high-quality work on faced boards and laminates, the DCS525 includes a 3mm scribe setting and improved splinter protection. The saw can make an initial shallow scoring cut before completing the full-depth cut, helping reduce breakout on delicate finished surfaces.

The bevel range can be adjusted from -1° to 48°, providing both conventional bevel cuts and a small undercut facility for accurate panel fitting. Fine cutting-depth adjustment makes it easier to obtain repeatable results when working with different material thicknesses.

Dust can be connected through the DeWalt AirLock-compatible extraction port. Wireless Tool Control also allows the saw to activate a compatible DeWalt dust extractor automatically when cutting begins.

The DeWalt DCS525N-XJ is supplied as a bare unit in a cardboard carton. Batteries, charger, guide rail and TSTAK case are not included.

KEY FEATURES

• New-generation DeWalt 18V XR cordless plunge and track saw
• Efficient brushless motor for professional cutting applications
• Variable speed from 2,500–5,400rpm
• Uses a 165mm blade with a 20mm bore
• Maximum 59mm cutting depth without a guide rail
• Maximum 54mm cutting depth when used on a compatible guide rail
• Electronic anti-kickback protection with LED indication
• 3mm scribe setting helps reduce breakout on finished boards
• Improved splinter protection for cleaner cuts
• Fine cutting-depth adjustment
• -1° to 48° bevel adjustment
• Compatible with existing DeWalt dual-sided guide rails
• AirLock-compatible dust extraction connection
• Wireless Tool Control for compatible DeWalt dust extractors
• Simplified blade-change mechanism
• Part of the DeWalt 18V XR battery system

TECHNICAL SPECIFICATION

Manufacturer: DeWalt
Model: DCS525N-XJ
Product type: Cordless plunge saw / track saw
Battery platform: DeWalt 18V XR
Motor type: Brushless
Blade diameter: 165mm
Blade bore: 20mm
No-load speed: 2,500–5,400rpm
Maximum cut at 90° without rail: 59mm
Maximum cut at 90° with rail: 54mm
Bevel capacity: -1° to 48°
Scribe setting: 3mm
Guide rail compatible: Yes
Dust connection: DeWalt AirLock compatible
Wireless Tool Control: Yes
Battery included: No
Charger included: No
Guide rail included: No
TSTAK case included: No

SUPPLIED WITH

• 1 x DeWalt DCS525 18V XR Brushless Plunge Saw
• 1 x Instruction manual
• 1 x Cardboard carton

Please note: battery, charger, guide rail, TSTAK case and accessories are not included. Confirm the final UK package contents with your DEWALT supplier before publishing.

SEO META TITLE

SEO META DESCRIPTION

Brand: DEWALT
MPN: DCS525N-XJ
GTIN/EAN: Awaiting manufacturer confirmation
Condition: New
Voltage: 18V
Power source: Battery
Product type: Cordless plunge saw
Battery included: No
Charger included: No
Case included: No

FAQ: DOES THE DCS525N-XJ INCLUDE A BATTERY?

No. The DCS525N-XJ is supplied as a bare unit without a battery or charger. It is intended for users who already own compatible DeWalt 18V XR batteries.

FAQ: IS A GUIDE RAIL INCLUDED?

No. A guide rail must be purchased separately. The saw is designed to work with compatible DeWalt dual-sided plunge-saw guide rails.

FAQ: WHAT IS THE CUTTING DEPTH?

The DCS525 provides a maximum cutting depth of 59mm without a guide rail and approximately 54mm when mounted on a compatible rail.

FAQ: WHAT IS THE DIFFERENCE BETWEEN DCS525N-XJ AND DCS525NT-XJ?

The DCS525N-XJ is the bare saw supplied in a cardboard carton. The DCS525NT-XJ is supplied in a TSTAK case and current European listings also show a 48-tooth blade and double-ended hex key. Neither version includes a battery or charger.

FAQ: WHAT IS THE DIFFERENCE BETWEEN THE DCS525 AND DCS520?

The DCS525 operates on DeWalt’s standard 18V XR battery platform, whereas the DCS520 uses the higher-voltage 54V XR FLEXVOLT system. The DCS525 also introduces a higher maximum blade speed, electronic anti-kickback technology, a 3mm scribe setting and an extended -1° to 48° bevel range.

FAQ: WHAT IS THE DCS525 USED FOR?

The DCS525 is intended for accurate plunge cuts, trimming doors and panels, sizing sheet material, cutting kitchen worktops and producing long, straight rail-guided cuts. With the correct blade, it can be used on timber, plywood, MDF, laminated boards, PVC, fibre cement and composite decking.
